Mischpultverstärker 54
RIM bzw. Radio-RIM; München
- Country
- Germany
- Manufacturer / Brand
- RIM bzw. Radio-RIM; München
- Year
- 1954
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 118017
-
- Brand: Radiola-Industrie GmbH

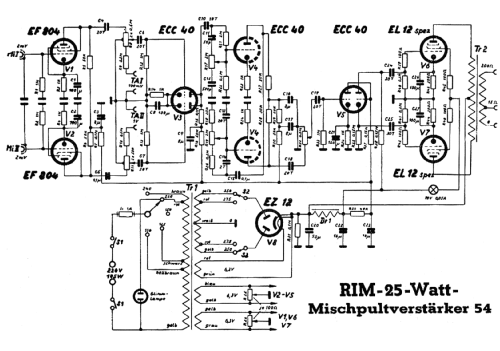

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Mischpultverstärker 54 - RIM bzw. Radio-RIM; München
- Dimensions (WHD)
- 500 x 290 x 275 mm / 19.7 x 11.4 x 10.8 inch
- Notes
- Frequenzgang 30···15000 Hz, Leistungsaufnahme 120 W, Empfindlichkeit 2 mV Mikro, 100 mV/1 V TA.
- Net weight (2.2 lb = 1 kg)
- 14 kg / 30 lb 13.4 oz (30.837 lb)
- Price in first year of sale
- 270.00 DM
- Mentioned in
- RIM Bastel-Jahrbuch 1954
- Author
- Model page created by Geert Schulte. See "Data change" for further contributors.
