MW-Superhetbaustein RMT100
RIM bzw. Radio-RIM; München
- Country
- Germany
- Manufacturer / Brand
- RIM bzw. Radio-RIM; München
- Year
- 1964
- Category
- Radio module post 1925 (not a part, not a key)
- Radiomuseum.org ID
- 258510
-
- Brand: Radiola-Industrie GmbH
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 3
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Powered by external power supply or a main unit. / 9 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Printed Circuit Board
- from Radiomuseum.org

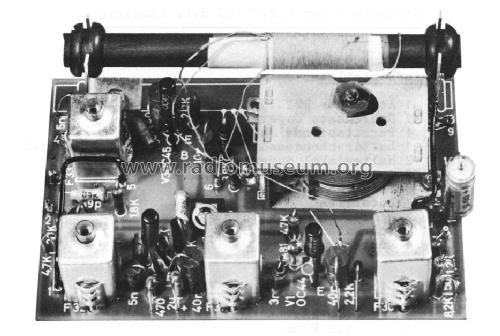

- Model: MW-Superhetbaustein RMT100 - RIM bzw. Radio-RIM; München
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 75 x 120 x 39 mm / 3 x 4.7 x 1.5 inch
- Notes
-
Fünfkreis-Transistorbaustein mit selbtschwingender Mischstufe und zwei ZF-Stufen.
