• Country
• Germany

• Manufacturer / Brand
• RIM bzw. Radio-RIM; München

• Year
• 1965

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 100262

• • Brand: Radiola-Industrie GmbH

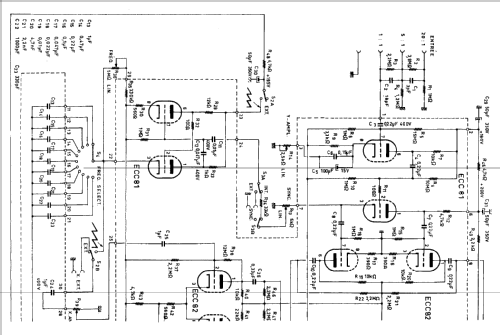

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC81 ECC81 ECC82 ECC82 DG3-12A

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 225 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oszillette 3 - RIM bzw. Radio-RIM; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 265 x 110 x 155 mm / 10.4 x 4.3 x 6.1 inch

• Notes
• 500-kHz-Kleinoszillograf als Bausatz (28822) für DM 199 oder als Fertiggerät.
  Baumappe 57750 extra DM 3,90.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 259.00 DM

• Source of data
• -- Original prospect or advert

• Mentioned in
• RIM Bastelbuch 1965

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
