• Country
• Germany

• Manufacturer / Brand
• RIM bzw. Radio-RIM; München

• Year
• 1972 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 183693

• • Brand: Radiola-Industrie GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• DG7-32

• Number of Transistors
• 39

• Semiconductors
• B250C600 B40C600 B40C600 1N4154 1N4154 1N4154 1N4154 1N4154 BYX10 BYX10 BYX10 BYX10 ZM15 BZY83 BZY83 BC107 BC107 BC107 BC107 BC107 BC107 BC107 BC107 BC107 BC107 BC107 BC109 BC109 BC109 BC177 BC177 BF117 BF258 or. BD150 BF258 or. BD150 BSY63 BSV89 BSY63 2N3055 BDX18 2N2905 or. BSX41

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

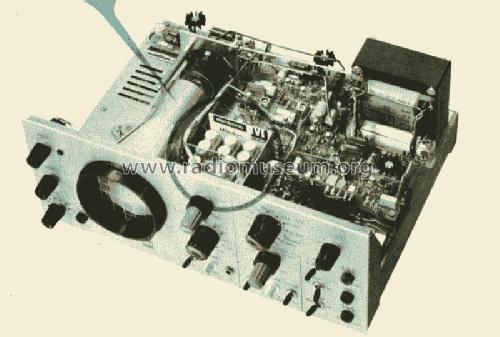

• Model: Oszillograf ROG-7GLT - RIM bzw. Radio-RIM; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 300 x 126 x 222 mm / 11.8 x 5 x 8.7 inch

• Notes

• Breitband-Kleinoszillograf

  • Bandbreite 0-10 MHz (-3 dB)
  • volltransistorisiert
  • Feldeffekt-Eingansstufe
  • Ablenkkoeffizient 30 mV_ss/cm
  • 12-stufiger Abschwächer
  • X-Verstärker 0-7 MHz (-3 dB)
  • Zeitablenkung 7 Hz - 900 kHz
  • Synchronisation automatisch 3 Hz-20 MHz
  • Zeile, Bild, Fremdsynchronisation
  • Sägezahnausgang
  • Eichspannungsgenerator 2 kHz, sechstufig einstellbar 0-10 V_ss
  • Leistungsaufnahme 27 VA

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Price in first year of sale
• 600.00 DM

• Literature/Schematics (1)
• Funkschau (Funkschau 1972 H.9 S. 271)

• Author
• Model page created by Wolfgang Siegmund. See "Data change" for further contributors.
