• Country
• Germany

• Manufacturer / Brand
• RIM bzw. Radio-RIM; München

• Year
• 1966 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100388

• • Brand: Radiola-Industrie GmbH

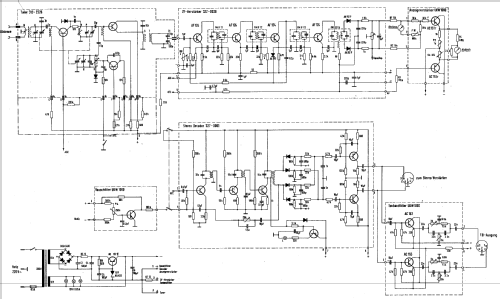

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors
• GM0760 GM0760 AF124 AF124 AF124 AF124 AF124 AC151r AC151r unknown_tr AC163 or. BC109 AC163 or. BC109 AC152 or. 40314 AA112 AA112

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Tuned circuits
• 13 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

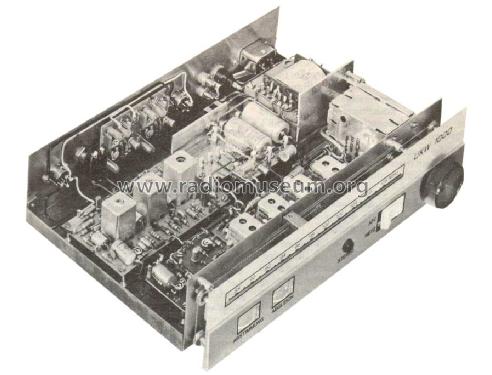

• Model: UKW 1000 - RIM bzw. Radio-RIM; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 320 x 90 x 225 mm / 12.6 x 3.5 x 8.9 inch

• Notes

• Radio RIM FM-Stereotuner UKW 1000. Görler Baugruppen. Tonbandfilter. Auch mit Vierfachdrehkondensator-Mischteil, dann geänderte Bestückung mit 17 Transistoren und 14 abgestimmten Kreisen.

  Bausatz 398/429 DM.

• Price in first year of sale
• 498.00 DM

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• Funk-Technik (FT) (16/1966, S. 585 - 587 / Beschreibung, Daten, Teilschema)

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
