Vorsatz-Super Var. 2
RIM bzw. Radio-RIM; München
- Country
- Germany
- Manufacturer / Brand
- RIM bzw. Radio-RIM; München
- Year
- 1954 ?
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 117959
-
- Brand: Radiola-Industrie GmbH

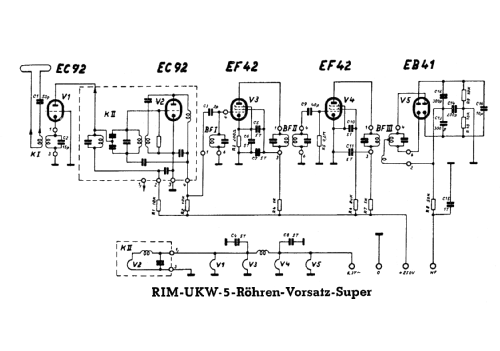

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 9 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Powered by external power supply or a main unit. / 6,3 & 250 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Vorsatz-Super [Var. 2] - RIM bzw. Radio-RIM; München
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 270 x 140 x 70 mm / 10.6 x 5.5 x 2.8 inch
- Notes
- Wellenbereich 85···100 MHz.
Preis ist Bausatzpreis ohne Röhren.
- Price in first year of sale
- 76.00 DM
- Literature/Schematics (1)
- - - Manufacturers Literature (RIM-Basteljahrbuch 1954, Seite 13+15)
- Author
- Model page created by Geert Schulte. See "Data change" for further contributors.
