• Country
• Japan

• Manufacturer / Brand
• Rincan (Kyowa Electric Chemical Co. Ltd.); Tokyo

• Year
• 1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 184835

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BD6 12AT6 35C5 35W4

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 120; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

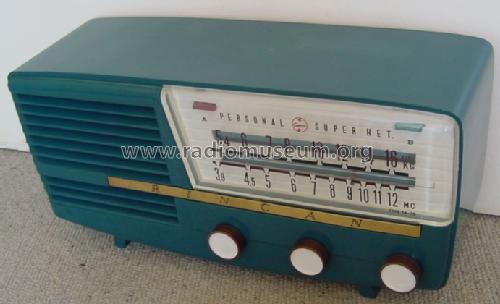

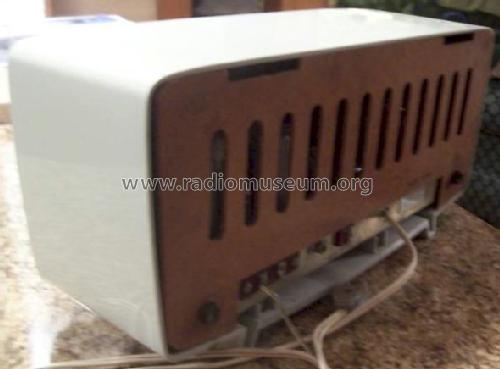

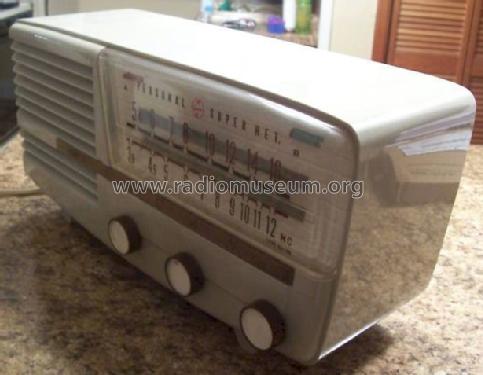

• Model: Personal Super Het 5A-35 - Rincan Kyowa Electric Chemical

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 410 x 194 x 135 mm / 16.1 x 7.6 x 5.3 inch

• Notes
• Rincan 5A-35;

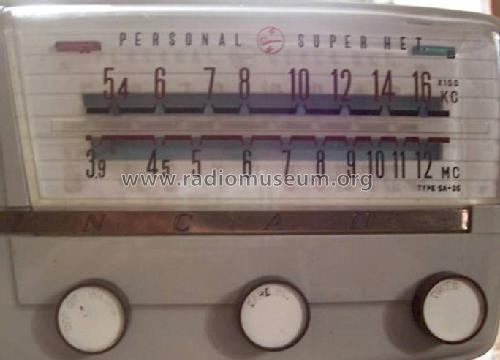

  SW: ~3.9 - 12 MHz,
  Models with autotransformer for 220 V AC supply known.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
