• Country
• Japan

• Manufacturer / Brand
• Rincan (Kyowa Electric Chemical Co. Ltd.); Tokyo

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148377

• Number of Tubes
• 7

• Valves / Tubes
• 12DT8 12DT8 12BE6 12BA6 12BA6 12AV6 50C5

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 230; 240-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Unknown 2 AM FM 2 Speaker - Rincan Kyowa Electric Chemical

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 25.25 x 6 x 6.5 inch / 641 x 152 x 165 mm

• Notes

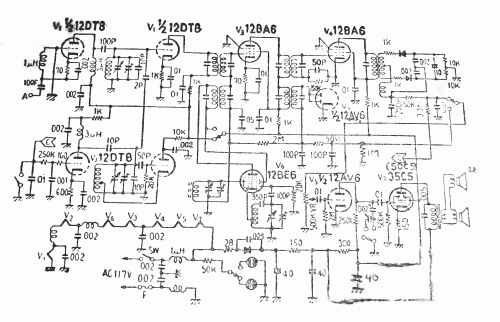

• Set is badged "AM FM 2 Speaker". Speakers 4x6 inches. Schematic fixed to case is for 117v set, but an auto-transformer is fitted with 230; 110; 100 taps. Back cover is marked 240-250v, probably for UK or Australian market. Schematic similar to model "Unknown"

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
