Automatik TV228-2-UHF
RIZ, Radio Industrija Zagreb; Zagreb
- Country
- Yugoslavia
- Manufacturer / Brand
- RIZ, Radio Industrija Zagreb; Zagreb
- Year
- 1966 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 338173
-
- alternative name: Radioindustrija Zabreb

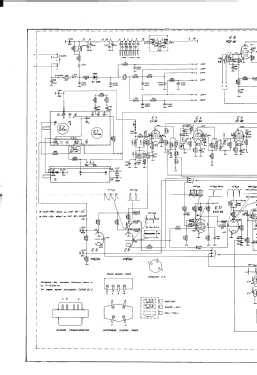

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 16
- Valves / Tubes
- PCC88 PCF80 EF85 EF80 EF80 PCL84 PCF80 ECH84 EF80 PCL82 ECH84 PCL82 PL500 PY81 DY87 A59-12W/2
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Automatik TV228-2-UHF - RIZ, Radio Industrija Zagreb;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
See also model RIZ TV 228-UHF with 20 tubes.
- Author
- Model page created by Radovan Drobnjakovic. See "Data change" for further contributors.
- Other Models
-
Here you find 76 models, 68 with images and 36 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from RIZ, Radio Industrija Zagreb; Zagreb
