- Country
- Yugoslavia
- Manufacturer / Brand
- RIZ, Radio Industrija Zagreb; Zagreb
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109197
-
- alternative name: Radioindustrija Zabreb
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with diode detector; Reflex
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

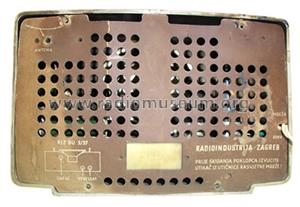

- Model: BU-357 - RIZ, Radio Industrija Zagreb;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 165 x 125 mm / 10.6 x 6.5 x 4.9 inch
- Notes

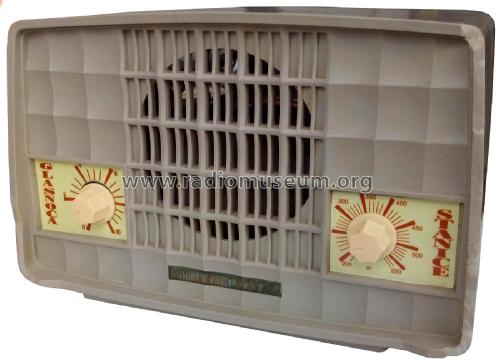

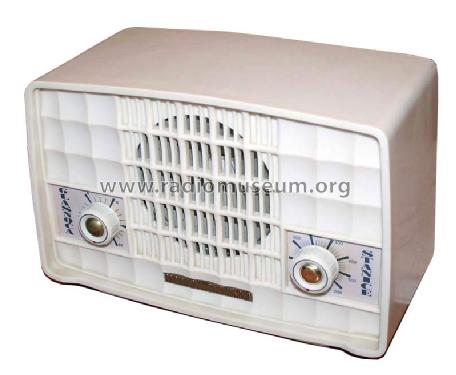

- "Volksradio" by RIZ. Manufactured in many colours.
- Net weight (2.2 lb = 1 kg)
- 1.850 kg / 4 lb 1.2 oz (4.075 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
