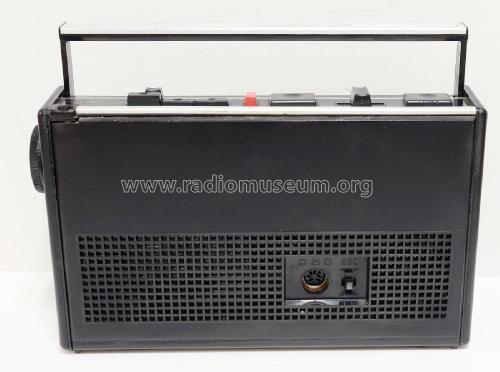

Radio Cassette Recorder RM303

RIZ, Radio Industrija Zagreb; Zagreb

Data
Forum
Pictures
Collections

  • Year
  • 1988/1988 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 353933
    • alternative name: Radioindustrija Zabreb

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 5 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radio Cassette Recorder RM303 - RIZ, Radio Industrija Zagreb;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 260 x 170 x 70 mm / 10.2 x 6.7 x 2.8 inch
  • Notes

  • Similar like  ITC Cassette Recorder 2 Band Receiver RM303



  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Author
  • Model page created by Danko Tkalec. See "Data change" for further contributors.
