Arkay 426
R.K. Radio Laboratories, Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- R.K. Radio Laboratories, Inc.
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 52358

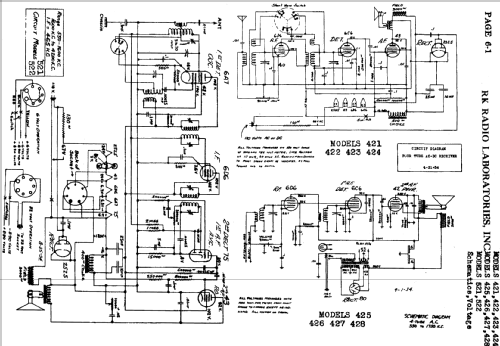

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Arkay 426 - R.K. Radio Laboratories, Inc.
- Shape
- Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
- Notes
-
BC (550-1750 kHz) band.
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 6 = 1935 and before
- Mentioned in
- Riders 6, RK 6-1
- Literature/Schematics (1)
- Cathedral & Tombstone Radios (page 53)
- Literature/Schematics (2)
- Table Top Radios Vol. 4 Stein 2003 (page 47.)
- Author
- Model page created by Peter Rutishauser. See "Data change" for further contributors.
