Old Lager Radio Keg RKC-4
R.K. Radio Laboratories, Inc.
- Country
- United States of America (USA)
- Manufacturer / Brand
- R.K. Radio Laboratories, Inc.
- Year
- 1933 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276391

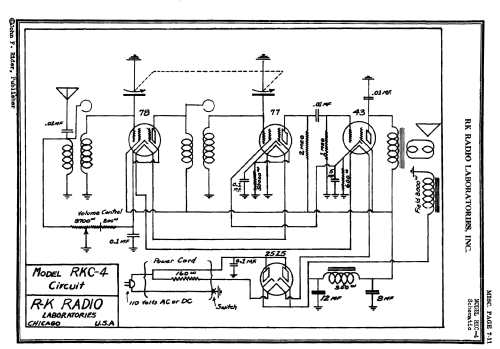

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 4 inch = 10.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Old Lager Radio Keg RKC-4 - R.K. Radio Laboratories, Inc.
- Shape
- Design Radio or Novelty / Gadget - fancy or unusual shape.
- Dimensions (WHD)
- 9 x 9 x 10.5 inch / 229 x 229 x 267 mm
- Notes
-
Early version of the Keg Old Lager radio from RK Radio Laboratories, Inc. Sales began in 1933 with the repeal of Prohibition and catered to newly reopened taverns.This radio uses a resistor line cord and TRF circuitry.
See also the late version of the Keg Old Lager with octal tubes.
- Literature/Schematics (1)
- Rider's Perpetual, Volume 7 = 1936 and before
- Author
- Model page created by Scott Rhode. See "Data change" for further contributors.
