Doublet ID = 52543
Radio Mfg. Engineers, Inc. (RME); Peoria, IL
- Produttore / Marca
- Radio Mfg. Engineers, Inc. (RME); Peoria, IL
- Anno
- 9999
- Categoria
- Ricevitore amatoriale (può includere bande broadcast)
- Radiomuseum.org ID
- 309069

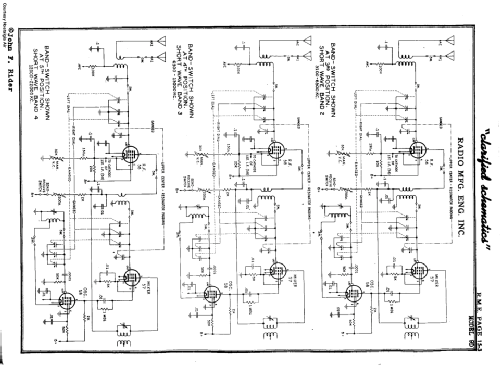

Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di tubi
- 9
- Principio generale
- Supereterodina con stadio RF
- Gamme d'onda
- Onde corte (solamente OC)
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110 Volt
- Altoparlante
- - Questo apparecchio richiede altoparlante/i esterno/i.
- Materiali
- Mobile di metallo
- Radiomuseum.org
- Modello: Doublet ID = 52543 - Radio Mfg. Engineers, Inc. RME
- Forma
- Soprammobile a cassapanca o cassetta, solitamente con coperchio (NON a leggio)
- Dimensioni (LxAxP)
- 19 x 9 x 10.5 inch / 483 x 229 x 267 mm
- Annotazioni
-
First commercially produced communications receiver to offer a calibrated dial with bandswitching, bandspread, RF amplifier, R-meter, crystal filter and AVC in one package.
Completely hand built from start to finish by a single assembler belonging to a team of several assemblers. An assembler would draw a complete set of parts and would be responsible for the mechanical assembly and the complete electrical assembly. Because competition was fierce for recognition on who was the best, each assembler would proudly sign his name under the chassis of each successful receiver as it passed inspection and final adjustments.
Total number of RME-9D receivers built is probably around 500
- Prezzo nel primo anno
- 112.00 USD
- Autore
- Modello inviato da Peter Kahlich. Utilizzare "Proponi modifica" per inviare ulteriori dati.
