Strad "The Minitone" RMP75
R.M.Electric, Durham
- Country
- Great Britain (UK)
- Manufacturer / Brand
- R.M.Electric, Durham
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 146890
-
- Brand: Strad

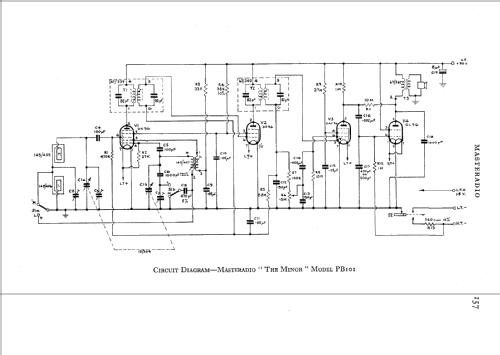

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 1.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Strad "The Minitone" RMP75 - R.M.Electric, Durham
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes

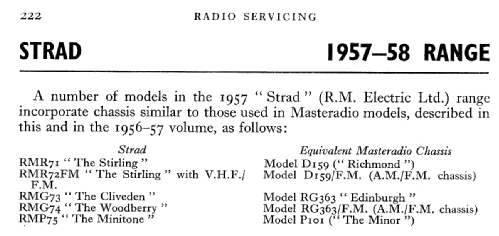

- Similar chassis as the Masteradio model P101.
- Source of data
- -- Schematic
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
