• Country
• Great Britain (UK)

• Manufacturer / Brand
• R.M.Electric, Durham

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146888

• • Brand: Strad

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Strad "The Stirling" RMR72 - R.M.Electric, Durham

• Notes

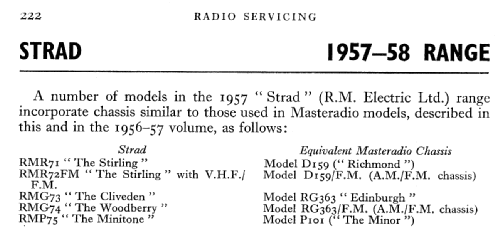

• Similar chassis as the Masteradio model D159FM.

• Source of data
• -- Schematic

• Circuit diagram reference
• Radio and TV Servicing books (R&TVS) book

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.

• Other Models

• Here you find 19 models, 11 with images and 12 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
