Stabilized Power Supply Rex 10H

Roband Electronics Ltd.; Charlwood

Data
Forum
Pictures
Collections

  • Year
  • 1966 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 339662

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 48 to 400 Hz: 100 to 125 or 200 to 250 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: Stabilized Power Supply Rex 10H - Roband Electronics Ltd.;
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 8.25 x 5 x 14.7 inch / 210 x 127 x 373 mm
  • Notes

  • A series of DC Power Supplies with these general characteristics:
    Stability (15% mains variation): 0.01%. Stability (0 to full load): 0.05%.
    Temperature coefficient: 0.01%/°C
    Protection: Self-resetting current limiter preset to operate at 110% of maximum current rating.
    Ripple and noise: 500 µV peak to peak.
    All models adjustable from min to max declared voltage.

        Model       Voltage     Current     Width      Height     Depth      Price  (Carriage paid UK)

       Rex 10H:      6 - 30         10A       8.25"          5"         14.7"                   £ 84

    Excludes Cabinet.

  • Mentioned in

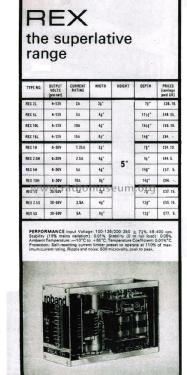

  • -- Original prospect or advert ("Electronic Engineering" volume 38, number 466 December 1966.)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
