• Country
• Great Britain (UK)

• Manufacturer / Brand
• Roberts Radio Co.Ltd., East Molesey, Surrey, UK

• Year
• 1972–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90167

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BC337 BC148 BF194 BC149 BC149 BC149 BC327 AD161 AD162

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm

• Power out
• 5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: RM40 - Roberts Radio Co.Ltd., East

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 18 x 5.25 x 6.5 inch / 457 x 133 x 165 mm

• Notes
• .

• Literature/Schematics (1)

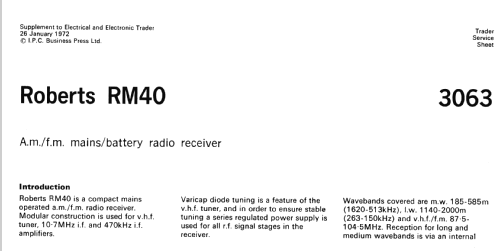

• Trader sheet 3063

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
