1630 (Japan 110)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Roberts Electronics Inc.; Los Angeles (CA)

• Year
• 1964

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 230680

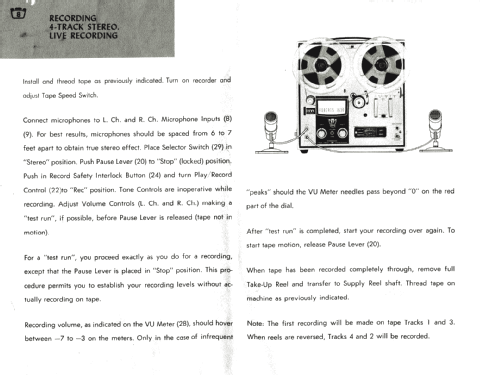

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 12AT7 or ECC81 12AT7 or ECC81 ECL82 or 6BM8 ECL82 or 6BM8 EZ81 or 6CA4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: 1630 - Roberts Electronics Inc.; Los

• Shape
• Tablemodel, low profile (big size).

• Notes

• Open reel recorder.

  Made in Japan 110

• Author
• Model page created by a member from A. See "Data change" for further contributors.
