• Country
• Germany

• Manufacturer / Brand
• Robotron-Elektronik Radeberg, VEB; Radeberg (Ostd:)

• Year
• 1975

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 127260

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• B31G1

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/ 10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110; 220 ; 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

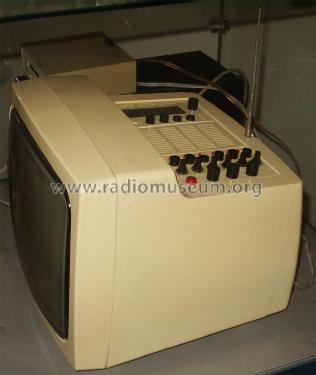

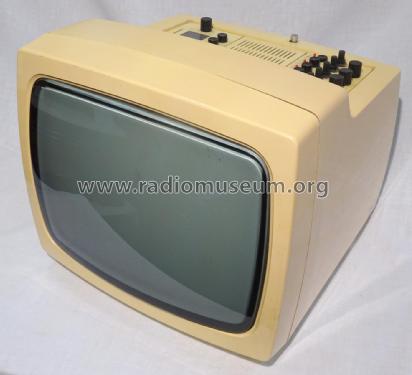

• Model: Combi Vision CV310 - Robotron-Elektronik Radeberg,

• Dimensions (WHD)
• 320 x 288 x 320 mm / 12.6 x 11.3 x 12.6 inch

• Notes
• Erstes Kofferfernsehgerät aus DDR- Produktion mit eingebautem Rundfunkempfänger, vorgestellt auf der Leipziger Frühjahrsmesse. Schaltkreise: A220, A211. Empfangsbereich Band I, III und IV, sechsteiliger Senderspeicher. Der Kombituner ist von Stassfurt übernommen.

• Price in first year of sale
• 1,775.00 Mark

• Source of data
• - - Data from my own collection

• Mentioned in
• Sortimentskatalog Elektroakustik (DDR, 1976)

• Literature/Schematics (1)

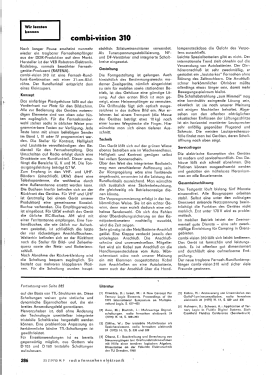

• Zeitschrift Radio Fernsehen Elektronik, Jahrgang 1976, Heft 9, Seite 289 ff.

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
