• Country
• Germany

• Manufacturer / Brand
• Robotron-Elektronik Radeberg, VEB; Radeberg (Ostd:)

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79825

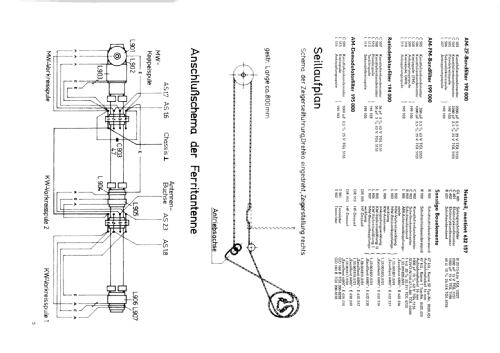

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

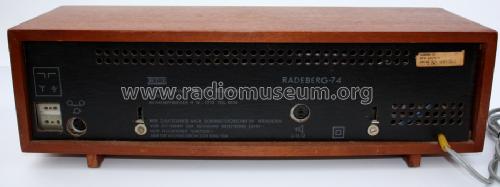

• Model: Radeberg 74 - Robotron-Elektronik Radeberg,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 145 x 120 mm / 18.9 x 5.7 x 4.7 inch

• Notes
• Europaband 49m gespreitzt, Anschlüsse für TA/TB, Zusatzlautsprecher

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 285.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)

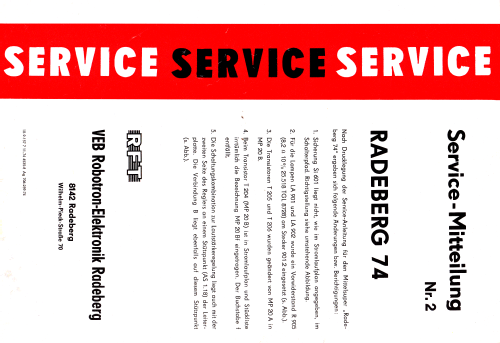

• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Bernd Pötzsch. See "Data change" for further contributors.
