- Country
- Germany
- Manufacturer / Brand
- Robotron Rechen- und Schreibtechnik Dresden, VEB; Dresden (Ostd.)
- Year
- 1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75177
Gerät steht im "DDR-Museum Zeitreise".
Kopie_ Archiv GFGF. Vielen Dank !
Kopie: Archiv GFGF. vielen Dank !
Kopie: Archiv GFGF Vielen Dank !

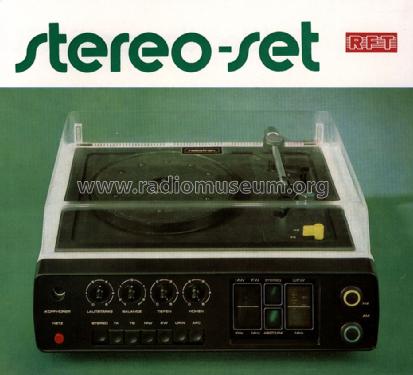

Archivbild

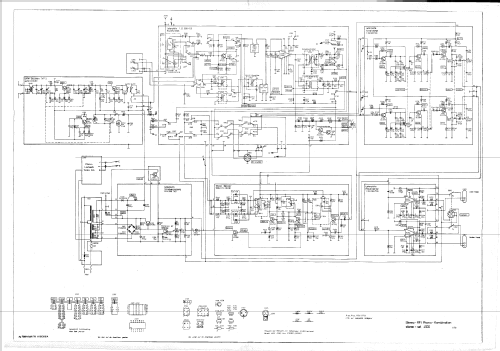

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 8 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo Set 4000 - Robotron Rechen- und
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 440 x 193 x 394 mm / 17.3 x 7.6 x 15.5 inch
- Notes
-
Plattenspielerzarge Türkis 024; 2× 4 W Ausgangsleistung.
Vorgänger vom Stereo Set 4001.3 IC, Halbleitertypen nur einmal aufgeführt
- Price in first year of sale
- 1,090.00 Mark
- External source of data
- RFE 21-22/77
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Sortimentskatalog Elektroakustik (DDR, 1979)
- Author
- Model page created by Jörg Kulbe. See "Data change" for further contributors.
- Other Models
-
Here you find 4 models, 3 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
