Stralsund RR1002

• Country
• Germany

• Manufacturer / Brand
• Robotron Vertrieb Berlin / Werk Stralsund, VEB (Ostd.)

• Year
• 1978/1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73311

• Picture

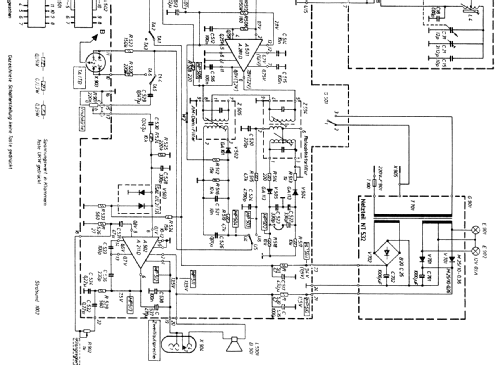

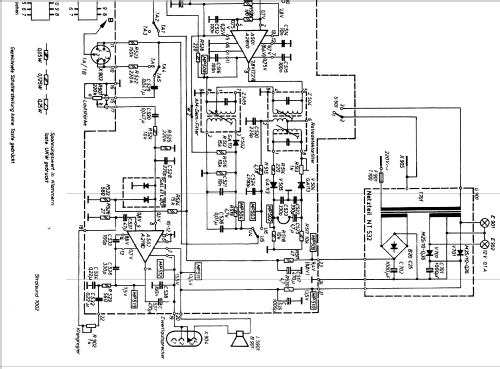

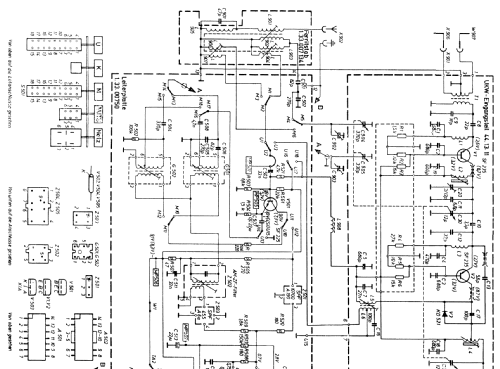

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stralsund RR1002 - Robotron Vertrieb Berlin /

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 486 x 123 x 130 mm / 19.1 x 4.8 x 5.1 inch

• Notes

• Elektrisch wie RR1001, 2 IC, zusätzl. je 1 Piezofilter AM und FM, Flachbahn-Schieberegler. Gehäusevarianten: poliert und farbig (365 Mark) oder mattiert (360 Mark).

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Price in first year of sale
• 365.00 Mark

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert (Funkverlag Hein, Service-DVD)

• Literature/Schematics (1)
• Sortimentskatalog Elektroakustik (DDR, 1979)

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
