Regis 120 1488
Rock-Ola Manufacturing Corporation (Rockola); Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Rock-Ola Manufacturing Corporation (Rockola); Chicago, IL
- Year
- 1961
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 139954
Regis 120 front view
Rock-Ola ad for Regis model 1488

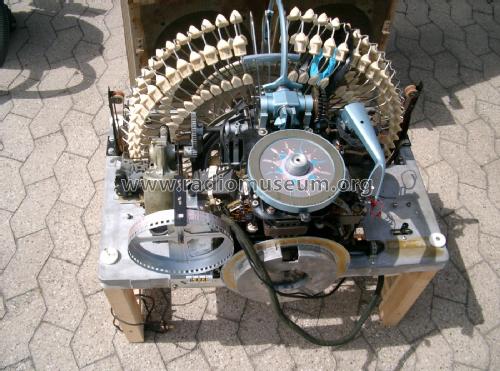

Show exemple off restauration
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Jukebox-Coin operated Phonograph; Loudspeaker + integr.Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 25 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Regis 120 1488 - Rock-Ola Manufacturing
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 1510 x 780 x 740 mm / 59.4 x 30.7 x 29.1 inch
- Notes

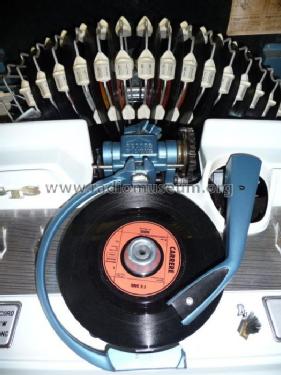

- This Rock Ola Jukebox model carries the typical "American car" styling of the sixties, has 120 selections (60 singles 45rpm). The Regis 120 features a stereo amplifiers (2x 25W) and stereo pickup; stereo sound was only possible with external speakers (model No 1622), and the unit itself was equipped with mono speaker system (2x 12" speaker and one high-frequency horn). Additionally, a reverba-sound unit could be fitted. The main selection mechanism and selector as well as the record grip system / record player arm were activated using 2x DC motors. The models sold in Europe / Germany were equipped with a step-down transformer or directly available in 220V.
- Net weight (2.2 lb = 1 kg)
- 155 kg / 341 lb 6.6 oz (341.41 lb)
- Source of data
- - - Manufacturers Literature
- Mentioned in
- Rock-Ola Parts Manual, Instructions & Installation Manual
- Author
- Model page created by Vincent de Franco. See "Data change" for further contributors.
