Ravensbourne 2 FET tuner Series II (2)

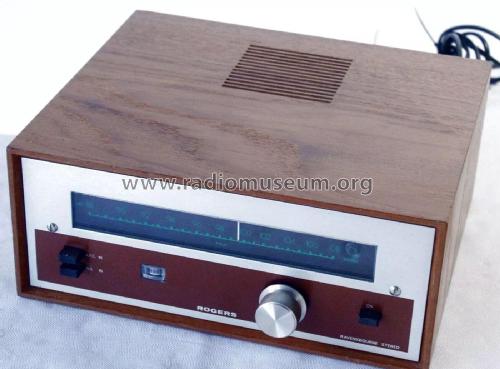

The Rogers Ravensbourne FET FM Tuner, Series II is an improved version of the earlier Ravensbourne 2 FET Tuner. This high-quality stereo FM tuner operates in the standard FM broadcast range of 88 to 108 MHz.

It features variable tuning and employs a wideband ratio detector for optimal signal processing. A center-zero tuning meter aids in precise station selection

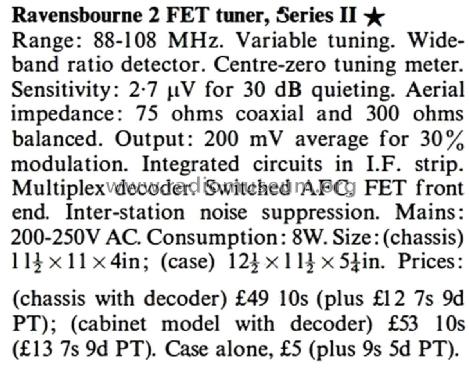

Key Specifications

• Sensitivity: The tuner boasts a sensitivity of 2.7µV for 30 dB quieting, ensuring excellent reception of weak signals
• Aerial Compatibility: It accommodates both 75-ohm coaxial and 300-ohm balanced aerial inputs, providing flexibility in antenna connections
• Output: The device delivers an average output of 200 mV at 30% modulation, suitable for connection to most amplifiers

Advanced Features

The Ravensbourne FET FM Tuner, Series II incorporates several advanced features:

• Integrated Circuits: The IF strip utilizes integrated circuits for improved performance and reliability
• Multiplex Decoder: This allows for stereo FM reception
• Switchable AFC: Automatic Frequency Control can be engaged to maintain accurate tuning
• FET Front End: Field Effect Transistors in the front end provide superior signal handling
• Noise Suppression: Inter-station noise suppression enhances listening comfort when tuning between stations.

This model builds upon the strengths of its predecessor, offering refinements and improvements to deliver exceptional FM tuner performance.
