- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1929 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339372
-
- alternative name: Rogers Radio Tube

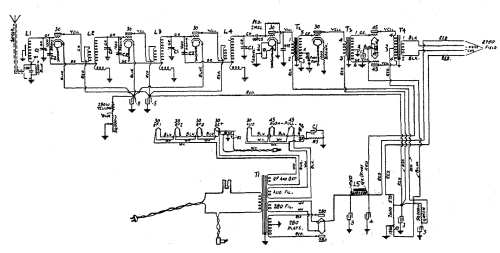

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 593 Ch= 832 - Rogers-Majestic, Standard
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Rogers A.C. tubes. Push-Pull output.
- Price in first year of sale
- 208.00 Dollar
- Mentioned in
- Rogers Service Manual Vol 1, Page 29
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
