• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231504

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6K7M 6A7M 6K7M 6F7M 6F7M 6F6M 6F6M 6X6 2X3 2X3 2X3 2X3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org

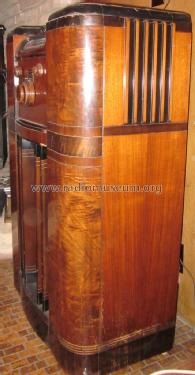

• Model: Majestic 8127 Ch= 8M1232 - Rogers-Majestic, Standard

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 27 x 41 x 14 inch / 686 x 1041 x 356 mm

• Notes

• this model is not shown in the RCC manuals.

• Author
• Model page created by Steve Valeriote. See "Data change" for further contributors.
