• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175077

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7G 1P5M 1P5M 1H5G 1C5G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5; 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: Majestic 41/50 Ch= 10M551 - Rogers-Majestic, Standard

• Notes
• This model is electronically identical to the Rogers 15/50 and the De Forest Flamingo.

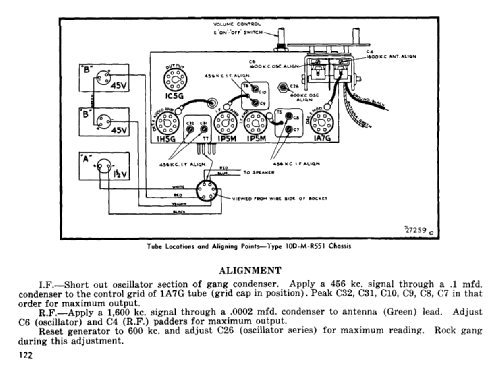

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section, pages 69 & Cross-Reference

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
