Majestic 4176A Ch= 10MA763

Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

Data
Forum
Pictures
Collections

  • Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 175611
    • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

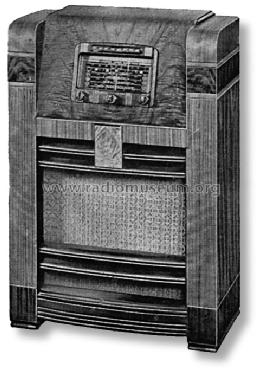

  • Model: Majestic 4176A Ch= 10MA763 - Rogers-Majestic, Standard
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 25.5 x 37 x 12 inch / 648 x 940 x 305 mm
  • Notes

  • The 6X6 tube is a tuning indicator. This set has an 8-pushbutton tuning system. This model is electrically identical to the Rogers 15/76A, 15/76CA, 15/78A, Majestic 4176CA, 4178A, De Forest A67/41, CA67/41 and A78/41.

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Rogers-Majestic section, pages 83, 78 & Cross-Reference
  • Literature/Schematics (3)
  • The Majestic Folder MIGD11 for 1941.
  • Author
  • Model page created by Robin Roeckers. See "Data change" for further contributors.
