Majestic 41/78 Ch= 10M791
Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1940/1941 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299720
-
- alternative name: Rogers Radio Tube

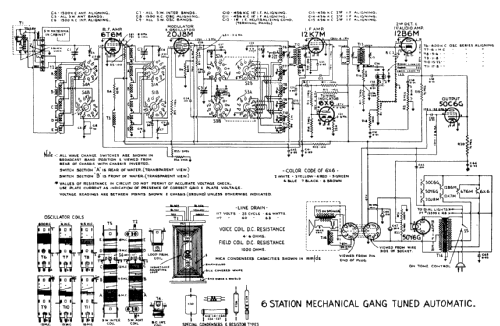

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Majestic 41/78 Ch= 10M791 - Rogers-Majestic, Standard
- Notes
-
The Majestic model 41/78 is a 7-tube radio for broadcast and shortwave reception. Has tuning eye tube and internal loop antenna for the broadcast band. Same schematic and chassis as the Rogers 15/78 and the Deforest "Calcutta".
- Literature/Schematics (1)
- - - Manufacturers Literature (Rogers service manual Vol 3 P. 137)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
