• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159026

• • alternative name: Rogers Radio Tube

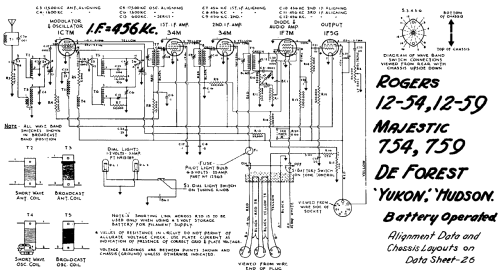

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1C7M 34M 34M 1F7M 1F5G

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage and/or dry batteries / 2 & 135 & 9 Volt

• from Radiomuseum.org
• Model: Majestic 759 Ch= 7M562 - Rogers-Majestic, Standard

• Notes
• The Rogers 12-54, 12-59, Majestic 754, De Forest Yukon and Hudson are electronically identical to this model.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 25, 26 & Cross Reference

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.

• Other Models

• Here you find 555 models, 231 with images and 506 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
