Majestic 761 Ch= 7M632
Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 159130
-
- alternative name: Rogers Radio Tube
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

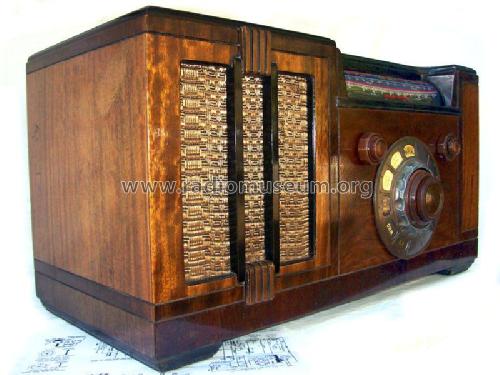

- Model: Majestic 761 Ch= 7M632 - Rogers-Majestic, Standard
- Notes
- This set has pre-set push-button tunning. The Rogers 12-61, 12-66, Majestic 768 and De Forest Columbian are electronically identical to this model.
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Rogers-Majestic section page 32, 33 & Cross Reference
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
