• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159060

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7M 6K7M 75M 41M 2X3 2X3

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org

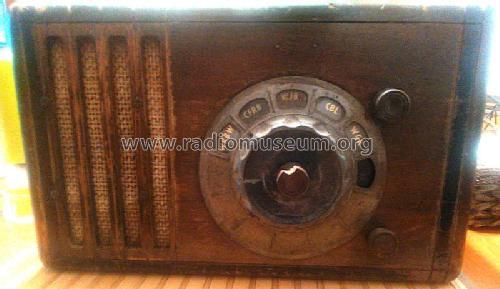

• Model: Majestic 762B Ch= 7M613 - Rogers-Majestic, Standard

• Notes
• This model uses a push-button tuning system. The Rogers 12-62, 12-62B, Majestic 762, 766, De Forest Seguenay and Seguenay B are electronically identical.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 27 & Cross Reference

• Literature/Schematics (1)
• -- Original-techn. papers. (Rogers-Majestic & De Forest Service Manual Volume 3, page 8)

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
