• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163566

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K7M 6J8M 6K7M 84M 6X6 6J5M 41M 41M 2X3 2X3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands

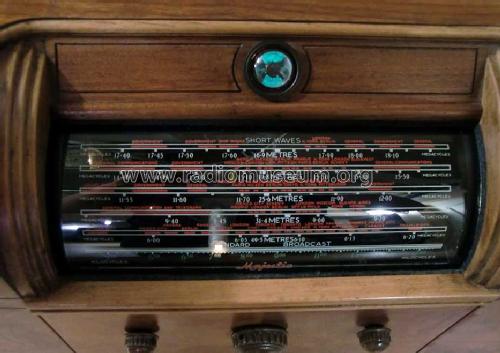

• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

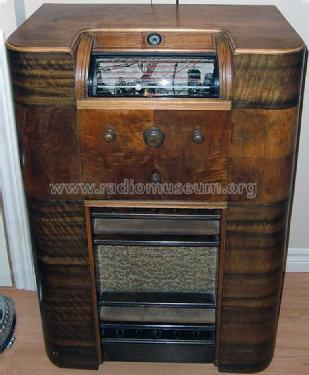

• Model: Majestic 8105 Ch= 8M1091 - Rogers-Majestic, Standard

• Shape
• Console with any shape - in general

• Notes
• The Rogers-Majestic model 8105 with chassis 8M1091 has a 6X6 as tuning indicator tube and five short wave bands: This set has a push-pull output circuit and motorized tuning with pushbuttons. The Rogers 13/106, 13/105 and Majestic 8106 are all eletrically identical to this model.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 47, 49, 50 & 51 and Cross Reference

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
