Majestic 950A Ch= 9M515
Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161629
-
- alternative name: Rogers Radio Tube

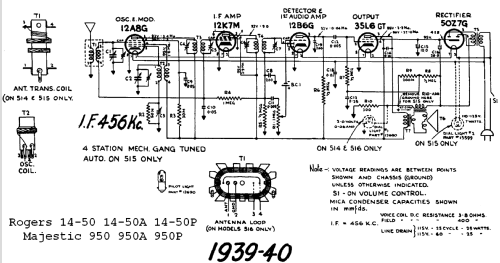

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Majestic 950A Ch= 9M515 - Rogers-Majestic, Standard
- Notes
- For 25 to 60 cycles mains supply. This set has an internal loop antenna. This set is electronically identical to the Rogers 14/50A and the De Forest St. Regis models. They also have 4-station mechanically-ganged automatic tuning as mentioned in the Rogers-Majestic & De Forest Radio Service Manual Volume 3 on pages 92, 113 & 114.
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- Radio College of Canada Data Sheet 63
- Author
- Model page created by Götz Linss † 27.06.21. See "Data change" for further contributors.
