• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166945

• • alternative name: Rogers Radio Tube

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1P5M 1A7G 1P5M 1H5G 1C5G

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 1.5; 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

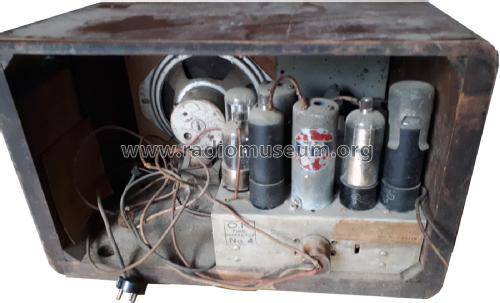

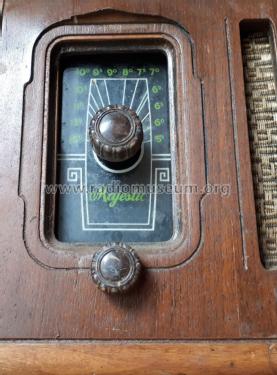

• Model: Majestic 951 Ch= 9M551 - Rogers-Majestic, Standard

• Notes
• This set is electrically identical to the Rogers 14/51 and the De Forest Drigo.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section, pages 53

• Author
• Model page created by Robin Roeckers. See "Data change" for further contributors.
