• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160351

• • alternative name: Rogers Radio Tube

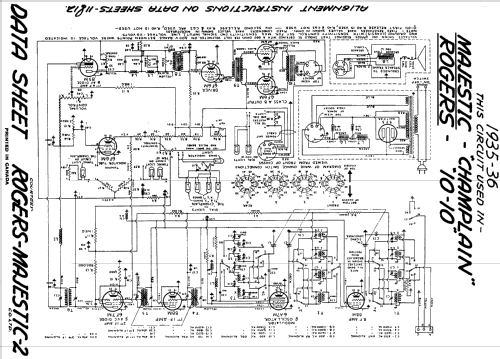

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 88M 6A7M 88M 6F7M 6F6M 85M 6F6M 6F6M 6F6M 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 456 kHz; 3 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Majestic Champlain Ch= 51 - Rogers-Majestic, Standard

• Notes
• The first 6F6M drives a tuning indicator (instrument). This set uses a push-pull output circuit. The Rogers Ten-10 is identical to this set.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Rogers-Majestic section page 2, 11, 12 & Cross Reference

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
