• Country
• Canada

• Manufacturer / Brand
• Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 251774

• • alternative name: Rogers Radio Tube

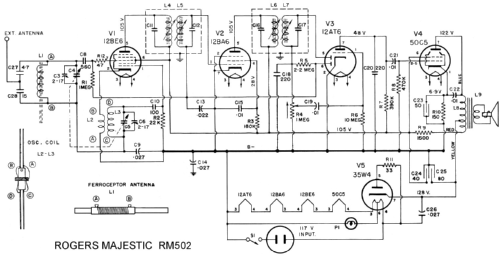

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: RM502 - Rogers-Majestic, Standard

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11.5 x 7.5 x 6.5 inch / 292 x 191 x 165 mm

• Notes

• The Rogers-Majestic model RM502 is a 5-tube table radio for AM broadcast reception. Has internal ferrite rod antenna.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 33)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
