Rogers 11-13 Ch= 6R1331
Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Country
- Canada
- Manufacturer / Brand
- Rogers-Majestic, Standard Radio Manufacturing, Rogers Radio Tubes; Toronto
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 158971
-
- alternative name: Rogers Radio Tube
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 25/60Hz, 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rogers 11-13 Ch= 6R1331 - Rogers-Majestic, Standard
- Dimensions (WHD)
- 28 x 44 x 15 inch / 711 x 1118 x 381 mm
- Notes
-
This model uses a push-pull audio output circuit. The last 86M tube listed is used as a voltage regulator. This set is electrically identical to Rogers Custom Built and Majestic Queen Mary. Note: On RCC page 19 the chassis drawing shown to belong to this list of models does not match the schematic.

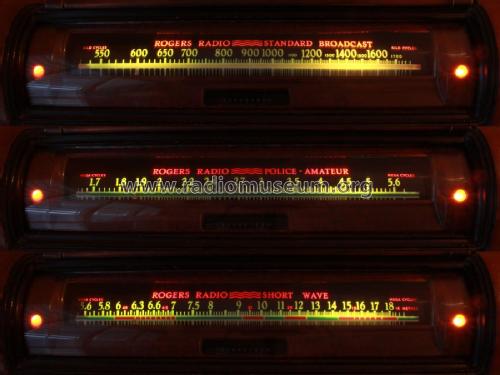

This model has a built-in logging scroll, that is driven by a Hartshorn automatic spring shade roller, and shows US and Canadian SW stations with frequencies and call letters. The cabinet has been made by Mclagan Furniture Co. Ltd. of Stratford, ON. The chassis has a rolling pin dial (unlike the Majestic Queen Mary 6M1331), and tuning is assisted by two (not one) 24V mini-bulbs, left and right of the dial
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Rogers-Majestic section page 19 & 24
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
