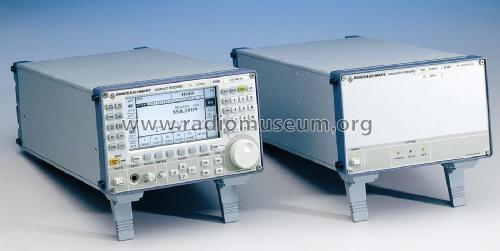

Compact Receiver ESMC
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1993 ?
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 329943
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superhet, double/triple conversion; ZF/IF 21400 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 100; 120; 230; 240 / 10 - 32 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 0.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Compact Receiver ESMC - Rohde & Schwarz, PTE; München
- Shape
- Rack
- Dimensions (WHD)
- 219 x 147 x 460 mm / 8.6 x 5.8 x 18.1 inch
- Notes
-
Compact receiver ESMC: PLL based receiver with a second IF of 21'400 kHz, tuning steps 1 Hz, 1000 memories, AM, FM, PULSE modes; up to five IF bandwidths;
advanced scanning and search routines included memory, frequency and hopper detection; BITE
IEC 625-2 (standard) and RS 232C / RS 422 / RS 485 (optional) computer controlVariants / options:
- ESMC (standard): frequency coverage 20 - 650 MHz
- ESMC, ESMC-T2: frequency coverage 20 - 1300 MHz (4030.2007.22)
- ESMC, ESMC-T0: frequency coverage 0,5 - 650 MHz
- ESMC, ESMC-T2, ESMC-FE: frequency coverage 20 - 3000 MHz
- ESMC, ESMC-T2, ESMC-T0, ESMC-FE, ESMC-TC: frequency coverage 0,5 - 3000 MHz
Options:
- ESMC-FE: external frequency extension unit (one option fits in the ESMC)
- ESMC-AN: antenna splitter
- ESMC-OR: 10 MHz reference oscillator
- ESMC-S3: optional demodulator for A1 and USB/LSB
- ESMC-SU: simple panoramic display using the internal LCD display
- ESMC-AS: software for PC control
- ESMC-R1 or R2: Remote control from external computer
- ESMC-GB: external remote control unit working via serial connection
Several units can be connected over IEC / IEEE bus to form an ESMC-RAMON compact radiomonitoring system.
Direction finding system with VHF / UHF Direction finder DDF190 and spectrum display EZP513.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
