Frequenzhubmesser HS 89/13
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1953 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 279863
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

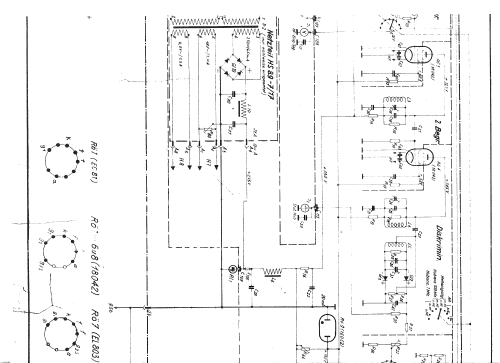

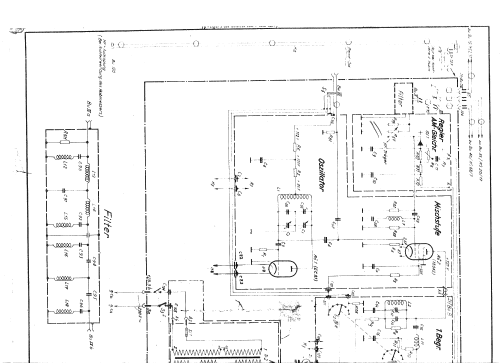

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz; 3 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Frequenzhubmesser HS 89/13 - Rohde & Schwarz, PTE; München
- Shape
- Rack
- Dimensions (WHD)
- 520 x 168 x 275 mm / 20.5 x 6.6 x 10.8 inch
- Notes
-
Frequenzhubmesser ohne Gehäuse, für den Einbau z.B. in Sendergestellen.
Frequenzbereich 170...230 MHz (TV-Bereich III)
Frequenzgang +/- 0,5 dB von 30 Hz bis 15 kHz, +/- 1 dB bis 45 kHz
Ausgangsspannung +6 dBu (1,55 V) an 600 Ω entsprechend 30 kHz Hub.
Einschaltbare Nachentzerrung (De-emphasis) 50 µs
- Net weight (2.2 lb = 1 kg)
- 16 kg / 35 lb 3.9 oz (35.242 lb)

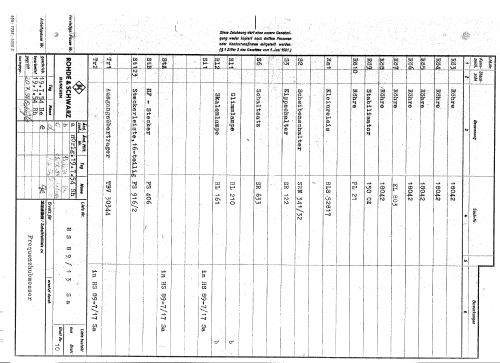

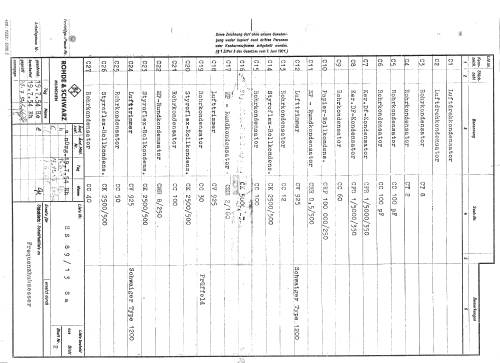

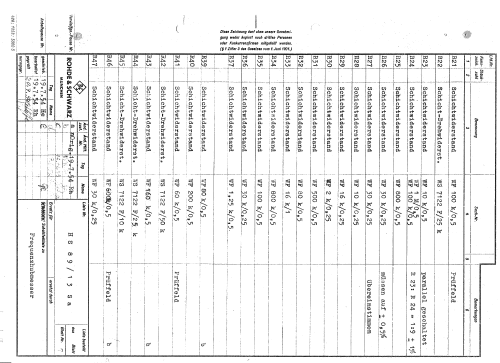

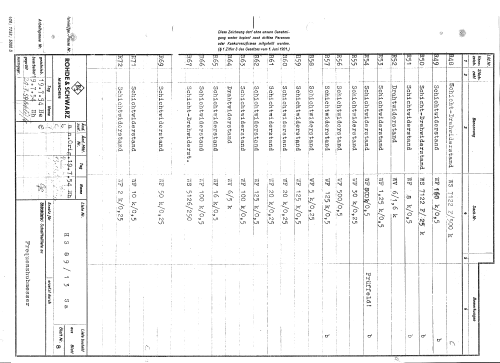

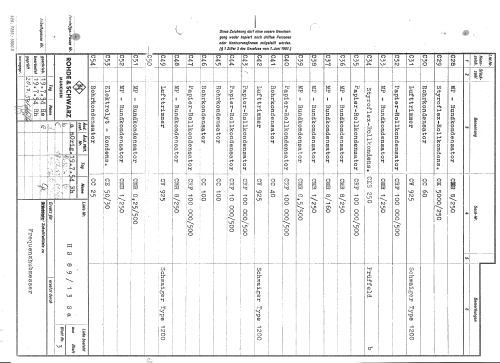

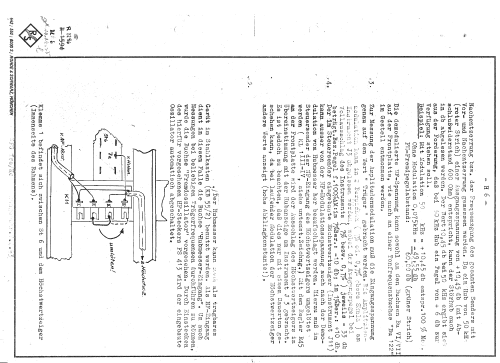

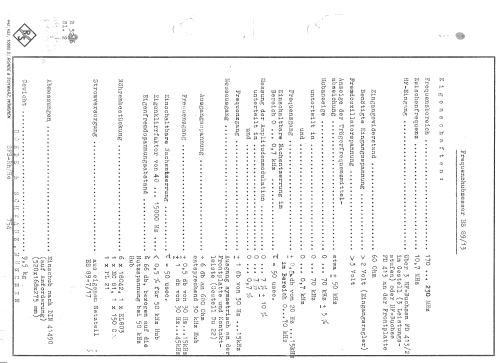

- Literature/Schematics (1)

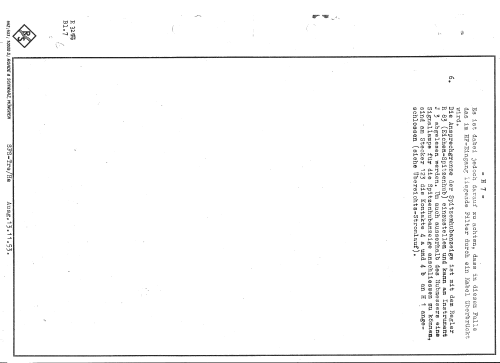

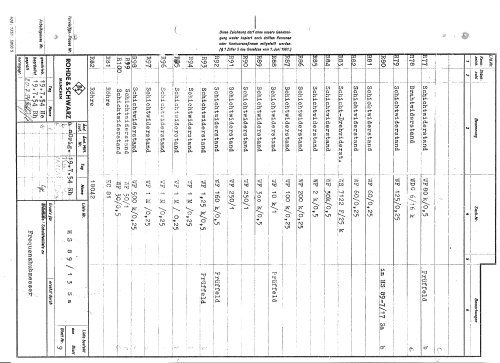

- -- Original-techn. papers.
- Author
- Model page created by Karl-Friedrich Haupenthal. See "Data change" for further contributors.
