• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1970 ??

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 328151

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Gleichstromzuführung - DC Feed Unit BN 35616-6/60 - Rohde & Schwarz, PTE; München

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 80 x 80 x 40 mm / 3.1 x 3.1 x 1.6 inch

• Notes

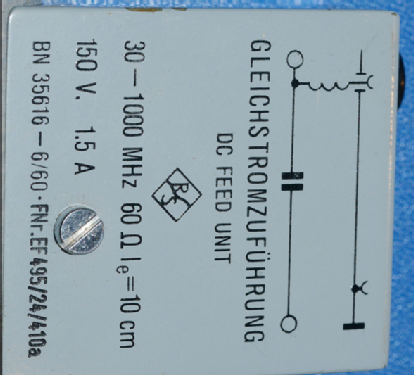

• Rohde & Schwarz Gleichstromadapter, um über die Koaxialleitung Speisespannung z.B. für einen Antennenverstärker zu übertragen. Stromanschluss über 4 mm Bananenbuchsen, HF Kabelanschluss mit Dezifix-B Kurzhubsteckern.

  Frequenzbereich 30 - 1000 MHz, 60 Ohm Wellenwiderstand. Effektive Länge 10 cm.

  DC-Speisung max. 150 V, 1,5 A.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Author
• Model page created by Michael Wagner. See "Data change" for further contributors.
