Kurzwellenempfänger EK07
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1956–1966
- Category
- Commercial Receiver (may include amateur bands)
- Radiomuseum.org ID
- 30983
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

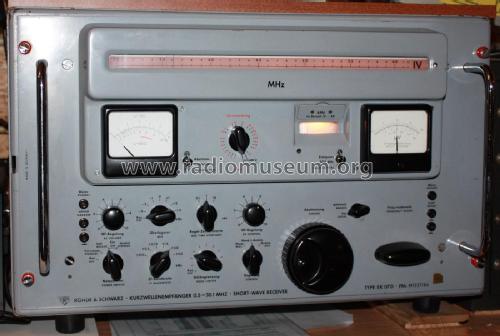

Rohde & Schwarz Short-wave receiver EK07
Ausführung D/2
Drehko aus EK07
Ausführung D/2
Audführung D/2
Audführung D/2, rückseitige Anschlüsse
EK-07 mit Sichtgerät PAG 724/300
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Main principle
- Superhet, double/triple conversion; ZF/IF 3300/300 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115, 125, 220, 235 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Kurzwellenempfänger EK07 - Rohde & Schwarz, PTE; München
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 540 x 325 x 552 mm / 21.3 x 12.8 x 21.7 inch
- Notes
-
AM/CW mit BFO, 0,5 - 30,1 MHz in zwölf Bereichen, Linearskala. Diverse Varianten. NZ07 FSK-Demodulator, NZ10 SSB-Demodulator. Röhrentypen nur einfach aufgeführt. Bis 6 MHz Einfachüberlagerung, über 6 MHz Doppelmischung.
- Net weight (2.2 lb = 1 kg)
- 65 kg / 143 lb 2.7 oz (143.172 lb)
- Price in first year of sale
- 17,000.00 DM
- Source of data
- -- Original-techn. papers.
