• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1962

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102350

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

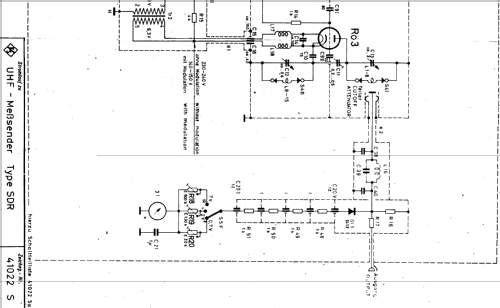

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EC55 ECC81 PL81 PL81 PL83 EF80 EF80 AZ41 AZ41 STV100/60ZII or ZZ1040

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 115; 125; 220; 235 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: UHF-Mess-Sender SDR - Rohde & Schwarz, PTE; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 540 x 301 x 378 mm / 21.3 x 11.9 x 14.9 inch

• Notes
• Frequenzbereich 300...1000 MHz in 8 Teilbereichen;
  Ausgang: Kurzhubstecker Dezifix B;
  Ausgangsspannung (EMK): 1 µV...3,5 V;
  Modulation: AM 1000 Hz Rechteck, Modulationsgrad 100 %, 10 µs Flankensteilheit;
  Impedanz:
  BN 41022/50 = 50 Ohm,
  BN 41022/60 = 60 Ohm,
  BN 41022/75 = 75 Ohm.

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,665.00 DM

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Friedrich Meierhöfer † 16.4.22. See "Data change" for further contributors.
