Modulation Analyzer FAM 334.2015.54
Rohde & Schwarz, PTE; München
- Country
- Germany
- Manufacturer / Brand
- Rohde & Schwarz, PTE; München
- Year
- 1987 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 120376
-
- alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz
Flohmarkttreffen
Flohmarkttreffen

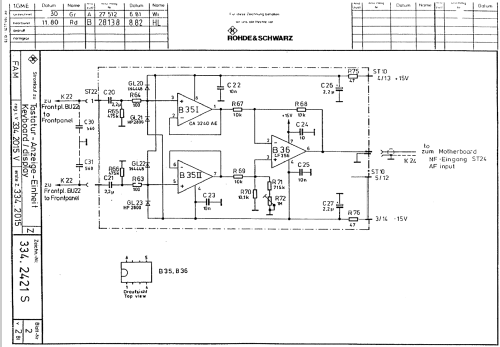

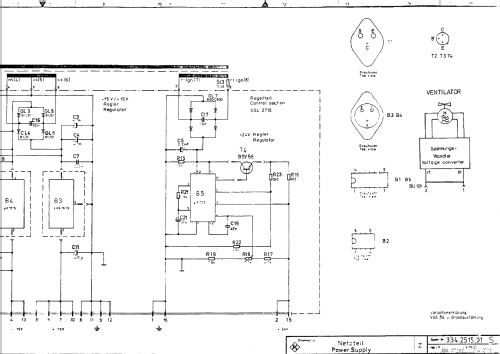

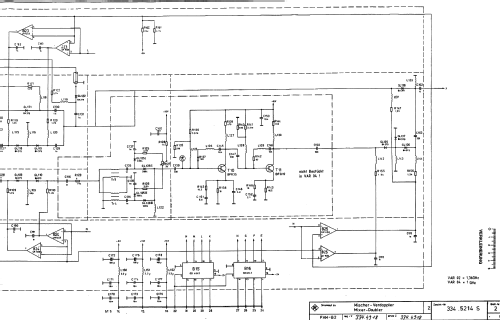

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 115; 125; 220; 235 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Modulation Analyzer FAM 334.2015.54 - Rohde & Schwarz, PTE; München
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 347 x 206 x 370 mm / 13.7 x 8.1 x 14.6 inch
- Notes
- Modulation Analyzer FAM.
55 kHz ... 120 MHz (Optionen 1 GHz und 1,3 GHz) für Messaufgaben in den Rundfunk-FM- und AM-Bereichen.
Messaufgaben: Amplituden-, Frequenz- und Phasenmodulationsmessung.
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
