Receiver Frequency Converter R19/TRC-1

Rohde & Schwarz, PTE; München

Data
Forum
Pictures
Collections

  • Year
  • 1960 ??
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 319216
    • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

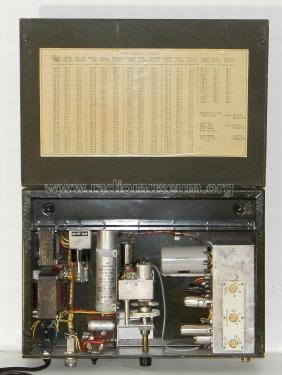

  • Model: Receiver Frequency Converter R19/TRC-1 - Rohde & Schwarz, PTE; München
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 400 x 85 x 305 mm / 15.7 x 3.3 x 12 inch
  • Notes

  • Vorsatzgerät für den Empfänger der USA-Funkanlage R19/TRC-1. Der Converter verschiebt den Empfangbereich des Empfängers von 70 MHz bis 100 MHz auf den Bereich 156,2 MHz bis 186,0 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Author
  • Model page created by Siegfried Droese. See "Data change" for further contributors.
