Satelliten-ZF-Messender - Satellite-IF Test Transmitter SFSZ 397.4709.54

Rohde & Schwarz, PTE; München

Data
Forum
Pictures
Collections

  • Year
  • 1992 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 298090
    • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

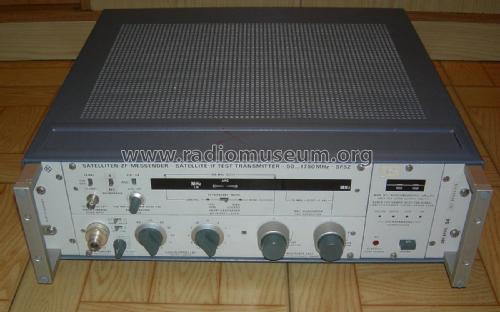

  • Model: Satelliten-ZF-Messender - Satellite-IF Test Transmitter SFSZ 397.4709.54 - Rohde & Schwarz, PTE; München
  • Shape
  • Boatanchor (heavy military or commercial set >20 kg).
  • Dimensions (WHD)
  • 490 x 140 x 460 mm / 19.3 x 5.5 x 18.1 inch

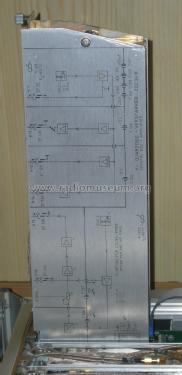

  • Notes

  • The SFSZ generates frequency-modulated carrier signals  from 50 MHz to 1750 MHz.

    The modulation signal may be a video signal with integrated digital audio, or a multiplex signal with analog tones.

    The maximum modulation is 30 MHz.

    Features :

    ·         Frequency range 50 - 1750 MHz
    ·         Output level at 60 μV rms to 200 mV rms
    ·         Attenuator up to - 70 dB in 1's and 10's division
    ·         Impedance 50 Ω
    ·         Pre-emphasis switched
    ·         FM 13.5 or 25 MHz switchable hub
    ·         External modulation

  • Net weight (2.2 lb = 1 kg)
  • 25 kg / 55 lb 1.1 oz (55.066 lb)
