• Country
• Germany

• Manufacturer / Brand
• Rohde & Schwarz, PTE; München

• Year
• 1953 ?

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 78320

• • alternative name: Messgerätebau Memmingen || Physikalisch-Technisches Entwicklungslabor Dr. Rohde & Dr. Schwarz

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• EF802 EF802 EC81 EF800 EF800 EF800 EF800 EF800 EF800 EF804S EF804S EF800 EF804S EF804S PL81 EZ80 85A2

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 17 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 110/125/150/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

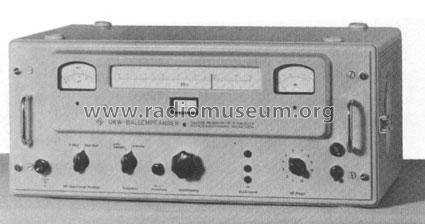

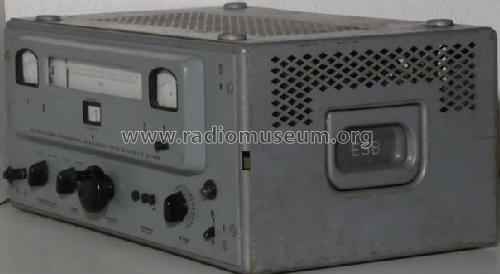

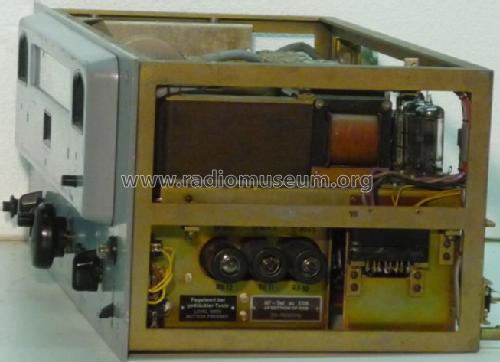

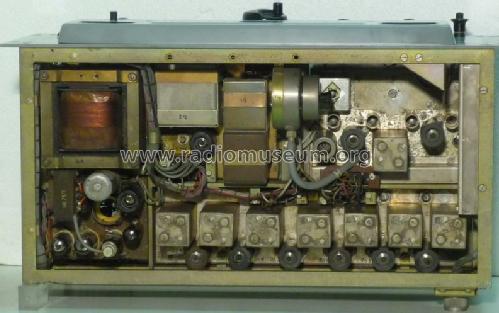

• Model: VHF-Ballempfänger ESB - Rohde & Schwarz, PTE; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 560 x 234 x 378 mm / 22 x 9.2 x 14.9 inch

• Notes
• Ballempfänger 87,5 - 108 MHz; techn. Daten siehe Unterlagen.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
