5 Watt, 6 by 9" Elliptical Speaker 6-9L
Rola Company (AUS) Pty. Ltd.; Melbourne
- Country
- Australia
- Manufacturer / Brand
- Rola Company (AUS) Pty. Ltd.; Melbourne
- Year
- 1955 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 310962
Rola 6-9L Back

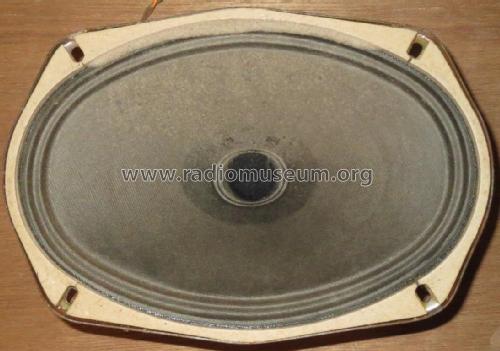

Rola 6-9L Front

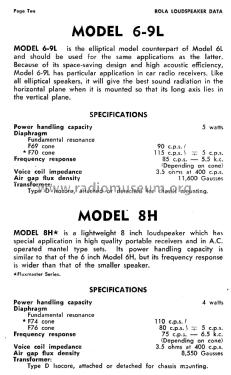

Rola 6-9L Spec
- Main principle
- Audio-Amplification
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 5 Watt, 6 by 9" Elliptical Speaker 6-9L - Rola Company AUS Pty. Ltd.;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 9 x 6 x 3.5 inch / 229 x 152 x 89 mm
- Notes
-
5 Watt, 6" by 9" Elliptical Loud Speaker with a 3.5Ω Voice Coil Impedance.
F70 cone which makes the resonance 115Hz.
Frequency Response 85Hz to 5.5kHz.
