- Country
- United States of America (USA)
- Manufacturer / Brand
- Roland Radio Corporation; Mount Vernon (NY)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 150634

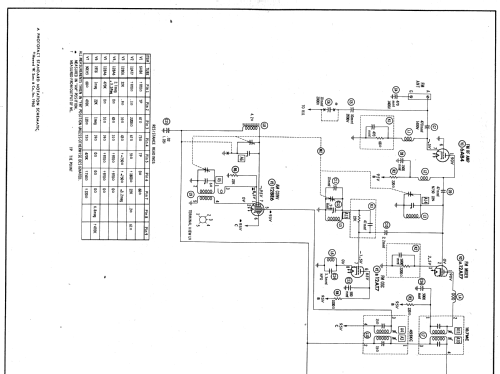

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 105 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 7A1 - Roland Radio Corporation;
- Notes
-
Very similar AM/FM model is the Roland AF1 (71-581).
Very similar AM versions are the Roland 5T17 "The Encore" and the Roland 51 184.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 494, Folder 15, Aug. 1960)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
